Feactures: - Tracked type, less damage to top soil; - Easy operation, high flatform, comfortable operation; |
|
|
| Machine Model |
/ |
1GLZ200 |
1GLZ230 |
| Dimension L*W*H |
mm |
3190*2250*2600 |
3190*2520*2600 |
| Machine weight |
Kg |
1960 |
2060 |
| Work Efficiency |
ha/h |
0.1-0.4 |
0.1-0.5 |
| Diesel engine |
Model |
Changchai 4L88 (Option 4G33TC) |
| Rated power |
85Hp/2600rpm (99Hp/2600rpm) |
| Type |
water cooled, 4cylinder, 4cycle, Turbocharged |
| Fuel tank |
60L |
| Driving system |
Gearbox |
YZ60X |
| Transmission |
HST stepless |
| F/R speed m/s |
Low 0-1.43; High 0-2.65; Standard 0-1.87 |
| Rubber track |
400-90-51 |
| PTO |
Output speed |
580RPM |
| Rotary Tiller |
Width |
2000mm |
2300mm |
| Dimension mm |
L:2200, W:800,H:900 |
L:2470,W:800, H:900 |
| Weight |
350Kg |
450Kg |
| Valid depth |
80-180mm |
80-180mm |
| Transmission |
Lateral Gears Transmission |
| Blade Quantity |
Left 47pcs, right 47pcs |
Left 53pcs, right 53pcs |
| Matching Method |
Standard Three-Point Linkage |

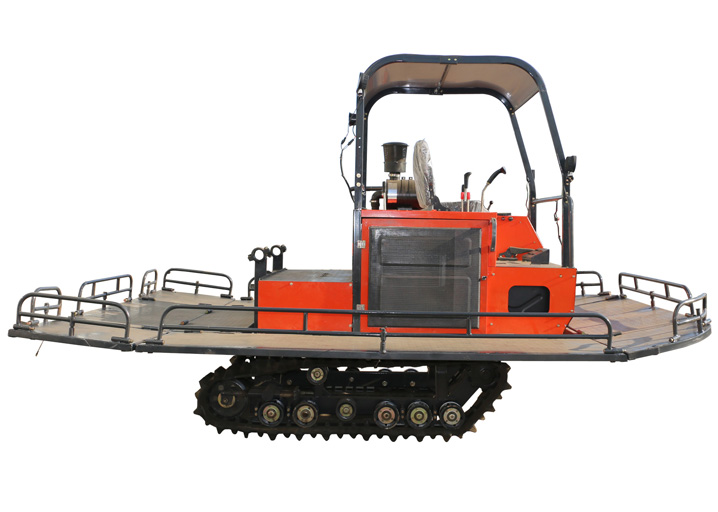

| Grain Hauler Kit |
Machine Size, mm |
4240*3100*2600 |
| Weight |
2100 |
| Front pallet,mm |
3100*740 |
| Rear pallet, mm |
3100*740 |
| Side pallet, mm |
left=right, 2760*740 |
| Rated capacity, MT |
2.5MT |
| Reminder |
Load less at front and more at rear for ideal balance. |
| Matched Engine |
4G33TC,99Hp/2600rpm |
| Note: Some specification, designs may be changed without prior notice. | |
|
