| Machine Model |
AU2.2I-DD-B with BALER |
AU2.2I-DD-C PLUS with BALER |
| Style & Type |
longitudinal flow, full-feeding,rubbertrack, self-propelled, self-baling system |
| Suitable Crop |
Paddy, Wheat, Barley etc. Crops |
| Extend to Corn, Rapeseed etc. with extra accessories |
| Working dimension L×W×H, |
5750×2500×2950 mm |
| Weight (empty tank), |
4700kg |
4800kg |
| Capacity |
Rice: 0.3-0.5ha/hour wheat: 0.4-0.6ha/hour |
| Min. Ground Clearance |
280mm |
| Ground Pressure |
0.0235kgf/cm2 |
0.0239kgf/cm2 |
| De-clogging Mechanism |
Conveyor reversing mechanism |
| Feed rate |
4.0kg/second |
| Engine |
Model & Type |
Changhai 4G33TC, Turbo, Water-Cooled, 4Cylinders, Direct In-Line |
| Rated Power |
100Hp/2600RPM, |
| Fuel tank |
90L |
| Fuel Consumption |
<30kg/ha |
| Rubber track |
Specification |
500×90×56 |
| Walking Transmission |
Type |
2HST+2gearbox, double driving. |
| Walking speed |
Forward |
0-6.3km/hour |
| Reverse |
| Steering type |
Hydraulic,doulbe driving |
| Cutter table |
Cutting width |
2.2 m |
| Control type |
Hydraulic |
| Diameter of head auger |
Φ318mm |
| Reel |
Type |
Tine bars + Eccentric bar frames |
| Diameter |
Φ1000mm, 5bars |
| Coneyor/Bridge |
Type |
Chains |
| Threshing unit |
Main drum dimension |
Φ605×2020mm |
| Main drum type |
I’ style= longitudinal flow |
| Drum quanity |
1 main thresher+ 1auxiliary reshresher |
| Concave |
4 Steel grids |
| Sieve |
Shaking sieve, adjustable |
| Cleaning type |
Shaking sieve + blowers + re-threshing |
| Blower type and qty |
Centrifugal type,Φ350mm |
| Grain unloading |
Type |
Auger, low position |
Auger, high position 270 degree rotable |
| Grain tank capacity |
Standard 1.3CBM |
| Straw baler |
Knotter type |
D type |
| Knotter quantity |
2pcs |
| Chamber section dimension |
480×300mm (Compression chamber) |
| Straw bales size |
W 480, H 300mm, L 350-700mm (adjustable) |
| Bales density |
>100kg/cbm |
| Baling rate |
>98% |
| Rectangular rate |
>95% |
| Baling pistion speed |
63-75times/minute |
| Theoretical capacity |
>6000Kg/Hour |
| Note: Some specification, designs may be changed without prior notice. | |
|

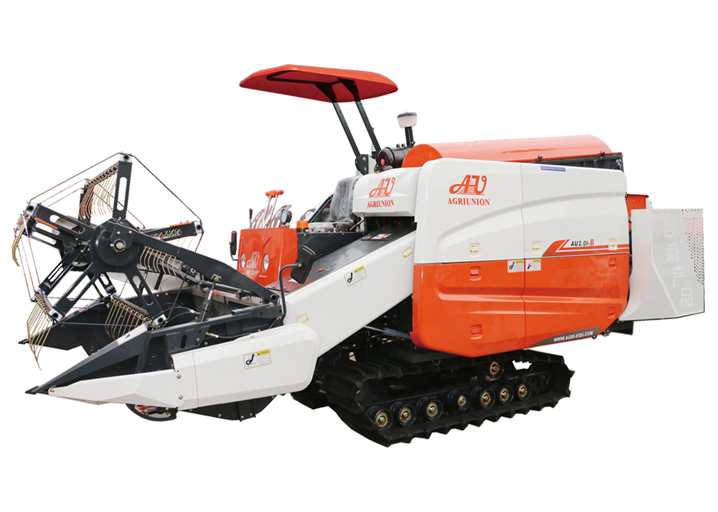

Double Driving Combine Harvester
