| Item |
Unit |
Description |

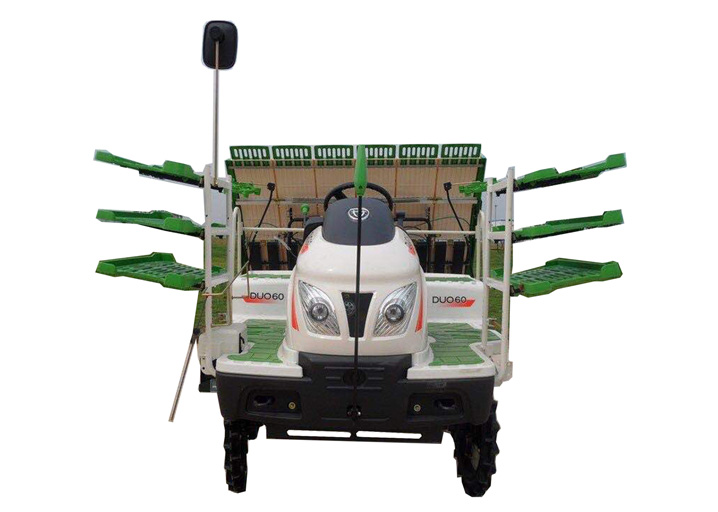

| Model: 2ZG-6B (DUO60) |
| Dimension |
Length |
mm |
3100 |
| Width |
mm |
2150 |
| Height |
mm |
2220 |
| Weight |
|
Kg |
632 |
| Transplanting organization type |
|
Rotary |
| Engine |
Brand and model |
|
Kawasaki FD620D |
| Type |
|
water cool, 2cylinders, 4stroke, gasoline engine |
| Power / rotation speed |
Kw (HP)/rpm |
11.4（15.5）/3600 |
| Fuel |
|
93# gasoline |
| Fuel tank |
L |
22 |
| Fuel consumpation |
kg/ha |
4.0-7.4 |
| Walking unit |
Steering type |
|
Hydraulic power |
| Front wheel |
|
Tubeless tires 2pcs, Diameter 650mm |
| Rear wheel |
|
Rubber convex helix 2pcs, Diameter 900mm |
| Transmission |
|
Forward 2gears, transplanting 1, back 1, HST stepless |
| Transplanting unit |
Speed |
km/hour |
0-5.76 |
| Line number |
line |
6 |
| Line pitch |
mm |
300 |
| Planting distance |
mm |
220/190/160/140/120/100 |
| Planting depth |
mm |
10-44 10levels |
| Picking depth on seedlings |
mm |
8~18 |
| Seedlings stack number |
trays |
6 |
| Efficiency |
|
ha/hour |
0.25-0.6 |
| Auto Function |
Auto horizontal ajdusting |
|
yes |
| Auto lift when backing |
|
yes |
| Auto lift when turning |
|
Optional |
| Auto planting when turning |
|
Optional |
| Middle line alarmer |
|
yes |
| Note: Some specification, designs may be changed without prior notice. | |
|
